VL53L0X TOF200C distance sensor, 200 cm
VL53L0X TOF200C distance sensor, 200 cm

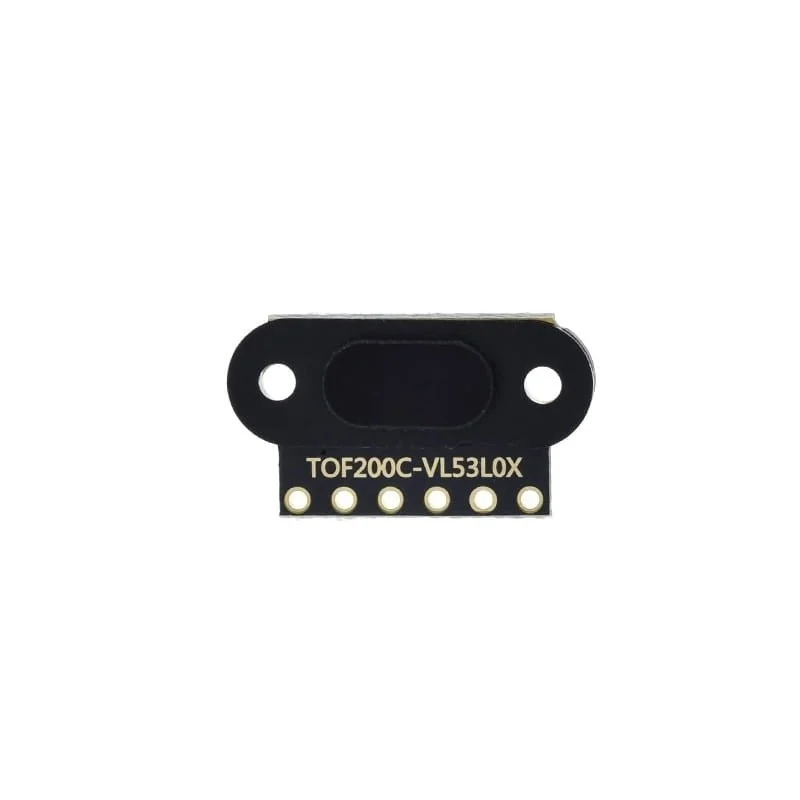

ToF distance sensor module based on the VL53L0X.
TOF200C: measuring range 3–200 cm, with an I2C interface.
The VL53L0X time-of-flight sensor combines a SPAD array (Single Photon Avalanche Diodes) with FlightSense™ technology for absolute distance measurement across different object colours and surfaces. A 940 nm infrared emitter and optical filters support a range of up to 200 cm with resistance to ambient light interference. The sensor has a 0–3 cm dead zone and a 25° field of view. The module also supports configurable measurement settings through its interface. API (Application Programming Interface) Available in C. Suitable for detecting objects and obstacles in industrial robots and mobile systems.
Features
- Range: 3–200 cm
- Dead zone: 0–3 cm
- Interface: I2C
- Programmable I2C address
- Field of view (FOV): 25°
- 1D gesture detection
- Interrupt output
- Protective cover
- Two M2 mounting holes
- Power supply: 3–5 V
- Current draw: 40 mA
- Operating temperature: −20°C to +70°C
Included
- VL53L0X sensor module
- 6-pin straight male header
- 6-pin right-angle male header
Item no. KL77500
